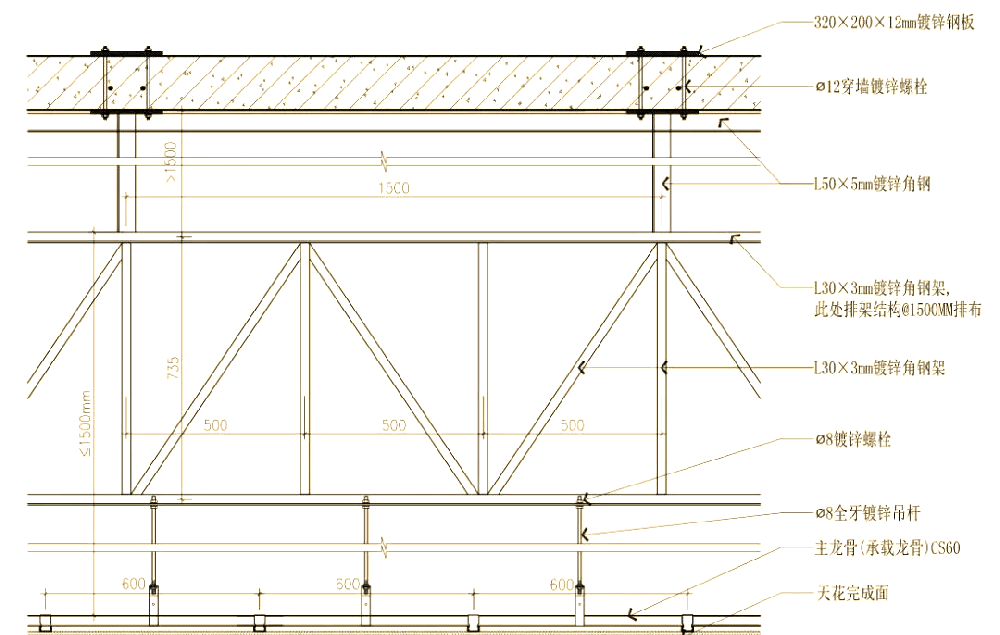

Detailed drawing of anti support node for suspended ceiling
Date：2025-05-19 Visits：1017
When the length of the suspension rod exceeds 1.5 meters but is less than 3 meters, insufficient stability of the suspension bar may cause safety hazards. To ensure stability, anti-support needs to be added. The specific method is to drill holes at the bottom edge of the cross brace of the CS60 main keel every two main keels, and then pass the M8 full tooth suspension rod through the hole and fix it up and down with nuts to enhance stability. At the same time, the slant support of the CS60 main keel shall be set every two times of the main keel spacing. If the length of the suspension rod is between 1.5 meters and 2 meters, it is suitable to use the CS50 main keel.
